Iwatsu® High Voltage Probe 30kV DC, 40kV max, 50MHz, 1000:1, Calibration Documents can be ordered separately (KAL-HVP)

HV-P30A

■ Max. Input Voltage: 30 kV DC, 40 kV pulse

■ Attenuation ratio: 1000:1

■ Low input capacitance: <7pF

■ High input impedance

■ System bandwidth: 50 MHz

HV-P60A

■ Max. Input Voltage: 60 kV DC, 80 kV pulse

■ Attenuation ratio: 2000:1

■ Low input capacitance: <7pF

■ High input impedance

■ System bandwidth: 50 MHz

IWATSU® High Voltage Probe 60kV DC, 80kV max, 50MHz, 2000:1, Calibration Documents can be ordered separately (KAL-HVP)

Models & Specifications

The IWATSU® HV-P Series comes in two versions:

			Article number	Attn.	B/W	Input Impedance	Compensation Range	Cable Length	Max. Input Voltage
£4,250.00 GBP excluding VAT Lead time 8 - 10 MONTHS		Datasheet Manual	HV-P30A	1000:1	50 MHz	100 MΩ \|\| <7 pF	15-50 pF	3 m	30 kV DC / 40 kV pulse
£5,700.00 GBP excluding VAT Lead time 8 - 10 MONTHS		Datasheet Manual	HV-P60A	2500:1	50 MHz	1000 MΩ \|\| <7 pF	20-50 pF	4 m	60 kV DC / 80 kV pulse

IWATSU® HV-P Options

There are several options and accessories available for the IWATSU® HV-P series.

	Order number	Article
£595.00 GBP excluding VAT Lead time 8-10 weeks	SK-301	IWATSU® High Voltage Probe Accessory: Probe Stand
£935.00 GBP excluding VAT Lead time 8-10 weeks	KAL-DAKKS-HVP30A	IWATSU® HV-P30A (re-)calibration according to ISO 17025, DC calibration with multimeter.
£620.00 GBP excluding VAT Lead time 8-10 weeks	KAL-HVP60A	IWATSU® HV-P60A factory recalibration, DC calibration with multimeter

(Re-)calibration certificates for the IWATSU® HV-P series

Our (Re-)calibration certificates for the IWATSU® HV-P series can be ordered with a new probe or for an existing one as a re-calibration certificate.

	Order number	Article
£620.00 GBP excluding VAT Lead time 8-10 weeks	KAL-HVP30A	IWATSU® HV-P30A factory recalibration DC calibration with multimeter
£935.00 GBP excluding VAT Lead time 8-10 weeks	KAL-DAKKS-HVP30A	IWATSU® HV-P30A (re-)calibration according to ISO 17025, DC calibration with multimeter.
£620.00 GBP excluding VAT Lead time 8-10 weeks	KAL-HVP60A	IWATSU® HV-P60A factory recalibration, DC calibration with multimeter
£935.00 GBP excluding VAT Lead time 8-10 weeks	KAL-DAKKS-HVP60A	IWATSU® HV-P60A (re-)calibration according to ISO 17025, DC calibration with multimeter

Probe stand connectivity

Connecting the HV-P60A to the SK-301 stand.

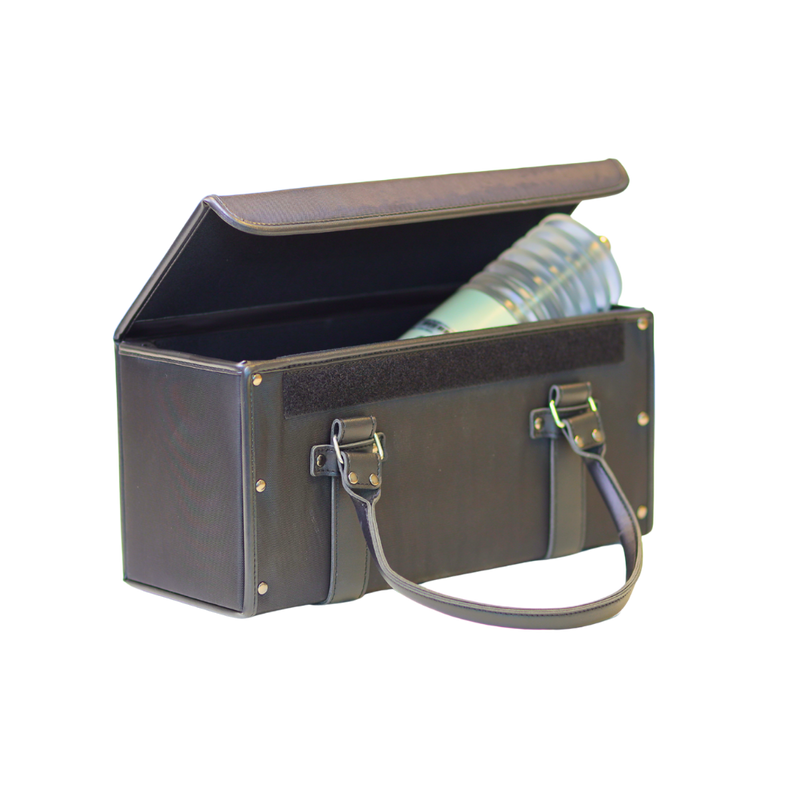

HV-P60A in transport box (HV-P60A scope of delivery)

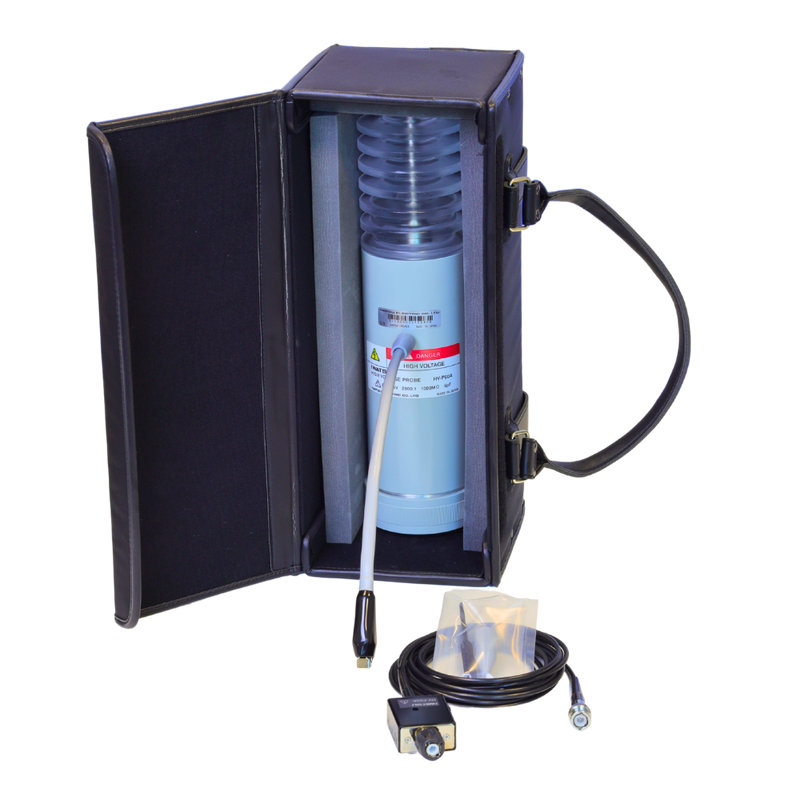

HV-P60A scope of delivery

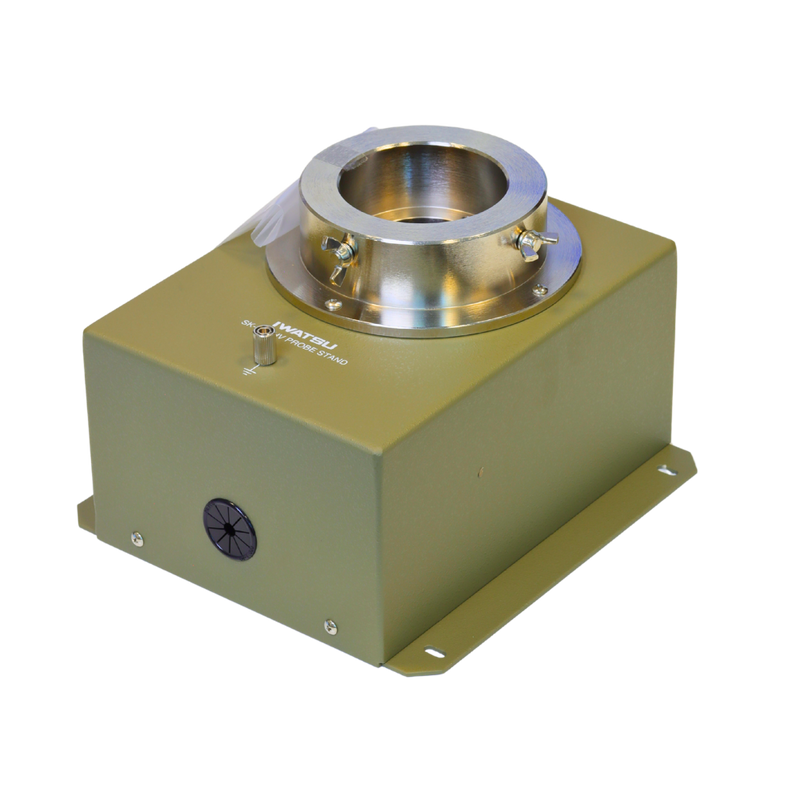

SK-301 stand. Suitable for HV-P30A and HV-P60A

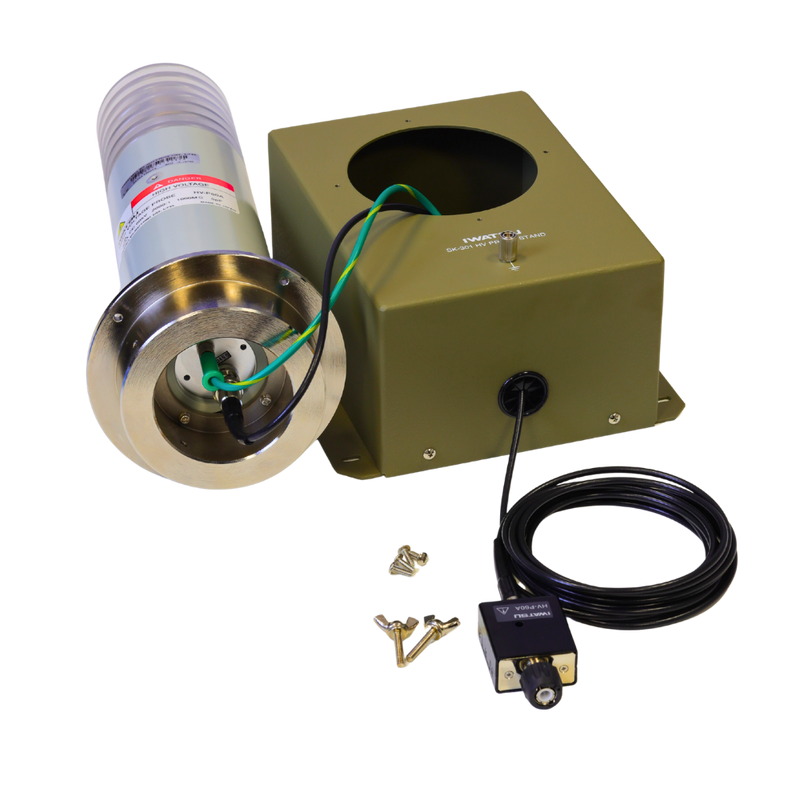

Green SK-301 ground cable connected to HV-P60A ground. HV-P60A output cable led through SK-301 stand.

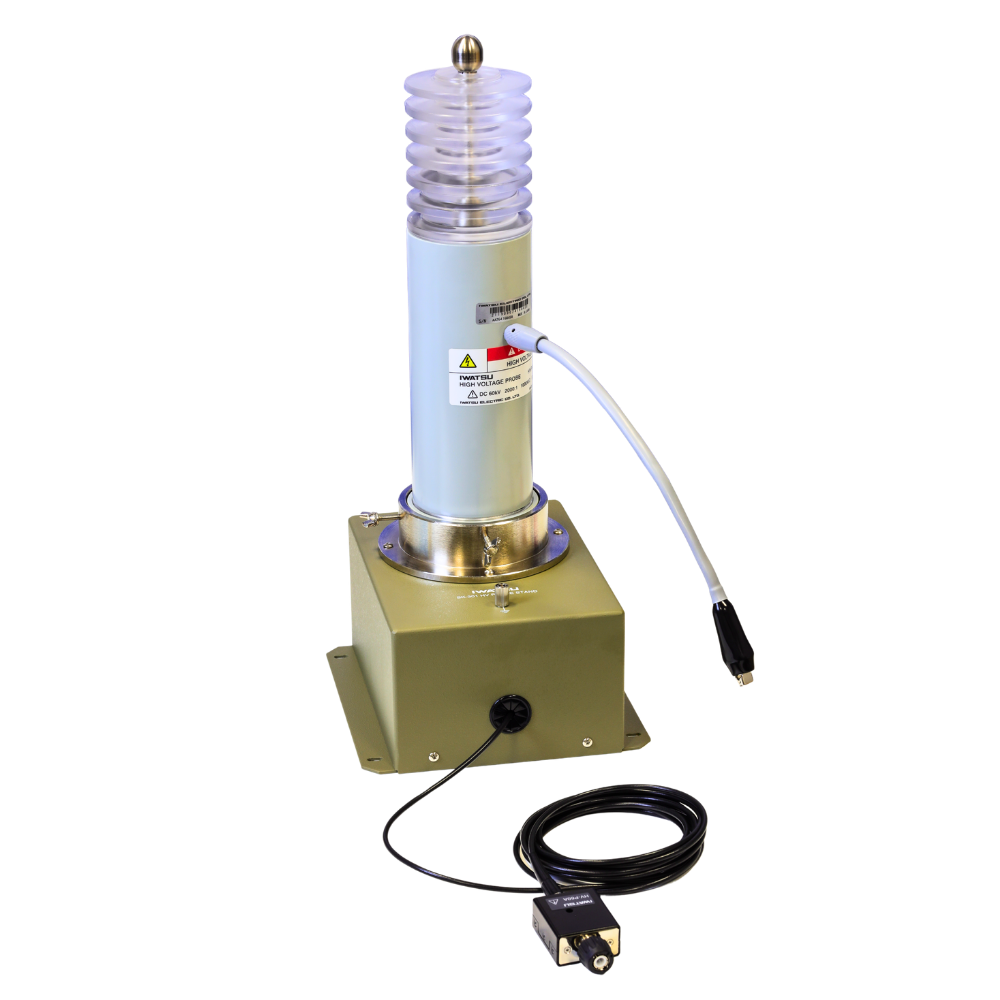

HV-P60A fully connected and fixed to SK-301 stand.
